Machine
Preshape
Technical specifications
“Are you looking for a CNC solution capable of meeting your most demanding needs?”
Length: from 1,500 mm to 7,000 mm.
Width: from 800 mm to 2,800 mm.
Height: from 2,200 mm to 3,100 mm.
Dimensions & Working strokes
X strokes: from 1,000 mm to 6,500 mm (8' to 18')
Y strokes: from 500 mm to 1,000 mm.
Z strokes: from 0 mm to 600 mm.
.jpg)

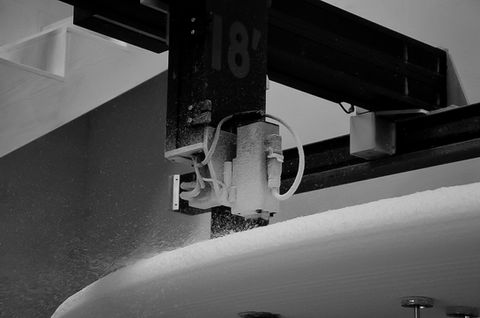

Suitable for all your machining projects, our electric spindle, available from 1 kW to over 10 kW, offers the power and precision required for custom machining and designs.
Our machines are equipped with a tungsten carbide pin milling cutter, allowing you to machine and sand in a single operation.
Electro-spindle & Tools
.jpg)
.jpg)
Suction cups - Hot wire
& Chip vacuum cleaner
Our vacuum system is equipped with a high-flow vacuum pump of 150 m³/h, guaranteeing high performance.
Thanks to the 90 mm suction cups, the parts are held in a stable position.
Our machines are designed to meet your requirements while maintaining a clean workspace thanks to the efficient extraction of material chips (3-axis machine only).
The hot wire allows foam blocks to be cut both inside and outside the machine.
%20PNG.png)
BRUSHLESS MOTOR
Our brushless AC motors deliver an impressive machining speed of 40,000 mm/min. Thanks to the optical encoder, you benefit from exceptional precision with a repeatability of 1/60° and a resolution of 1/60°.
LATEST GENERATION CHASSIS
Our KMSYSTEM profiles are ultra-rigid and designed for maximum strength using high-quality materials that guarantee durability and precision during use.
The profiles are developed and designed in France, allowing us to install the machine through standard doors.
PRECISE
& EFFICIENT GUIDING
Equipped with synchronous steel belts, our machines feature a linear monorail guide with ground ball bearings, protected from dust by a Teflon strip.
The result: increased precision and reduced maintenance costs.
RAW MATERIAL
Our machines are versatile and can machine all types of foam and wood.
