Machine
CNC CUTTING
Technical specifications
“Are you looking for a CNC solution that can meet your most demanding needs?”
A wide range of knives can be mounted on the vibrating head (round shank knife, fiberglass blade, carbon blade). Tool changes are quick and easy.
The knives have a useful stroke ranging from 0 mm to 110 mm.
Vibrating knife
& Tools
.jpg)
Our CNC machines can be equipped with sacrificial mats. These mats effectively hold objects in place during the cutting process.
With 3 to 6 independent suction zones, our vacuum table ensures optimal material retention.
Vacuum table
& Sacrificial mats
Length: from 1,500 mm to 7,000 mm.
Width: from 800 mm to 2,800 mm.
Height: from 2,200 mm to 3,100 mm.
We offer custom dimensions.
Dimensions & Working strokes
X strokes: from 1,000 mm to 6,500 mm.
Y strokes: from 500 mm to 2,300 mm.
Z strokes: from 150 mm ; 300 mm.
MOTOR
BRUSHLESS
Powerful technology delivering a machining speed of 40,000 mm/min with an optical encoder, 1/60° repeatability, and 1/60° resolution.
LATEST GENERATION CHASSIS
Our KMSYSTEM profiles are ultra-rigid and designed for maximum strength using high-quality materials that guarantee durability and precision during use.
The profiles are developed and designed in France, allowing us to install the machine through standard doors.
GUIDANCE PRECISE
& EFFECTIVE

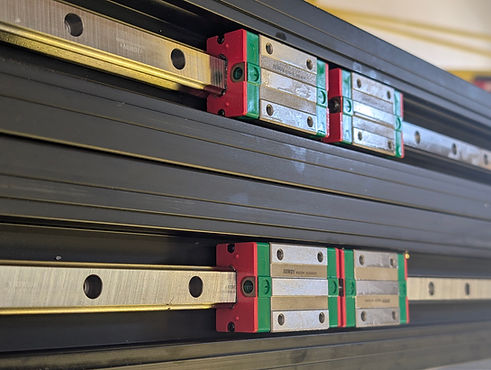

Equipped with synchronous steel belts, our machines feature a linear monorail guide with ground ball bearings, protected from dust by a Teflon strip.
The result: increased precision and reduced maintenance costs.
